Wanted: Upper Shroud Hardware

New Topic

Topic Locked

Printer Friendly

Author

Topic

ftworthsailor
Captain

Member Avatar

USA
279 Posts

Initially Posted - 03/04/2013 : 19:25:26

I am looking for some used hardware for my C-25. I need the hardware for both port and starboard upper shrouds. These include the following for each side:

locking nut
turn buckles (prefer closed body)
Lock nut
T-bolts with toggles
Clevis Pins with washer and cotter pin

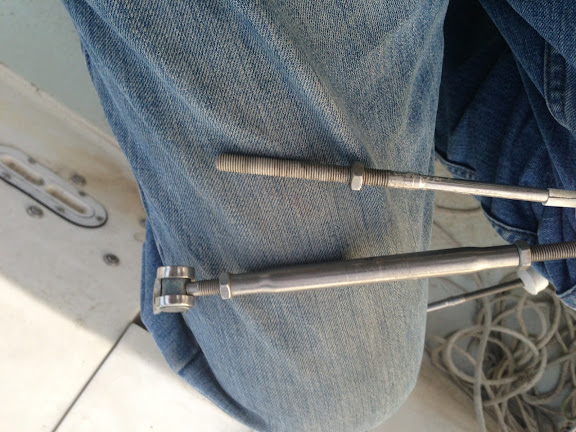

Image shows open turn buckles, I prefer closed body turnbuckles.

This image shows closed turn buckles that are on my forward and aft shrouds.

Will accept partials if you only have part of this list. Must be in good condition. Its going on my family boat.....
Thanks
R

Catalina 25, Hull #779, Built 1978, FK/SR "Miss Natalie"

Catalina 25, Hull #971, Built 1979, SK/SR,"Sea Legs"

"if we get lost, we'll just pull in somewhere and ask directions."

Edited by - ftworthsailor on 03/04/2013 19:40:26

shnool
Former Capri-25 Tech Editor

Members Avatar

USA
1032 Posts

Response Posted - 03/04/2013 : 20:26:13

I bought mine from cat direct.... http://www.catalinadirect.com/index.cfm?fuseaction=category.display&category_ID=99

Edited by - on

Ape-X
Admiral

Members Avatar

USA
662 Posts

Response Posted - 03/05/2013 : 04:11:48

i have some spare closed bodies. I replaced them with opens. How many do you need?

Edited by - on

ftworthsailor
Captain

Members Avatar

USA
279 Posts

Response Posted - 03/05/2013 : 07:53:54

I need two, however depending on your price, maybe one more as a spare. Do you also have the t-bolt assy that connects between the deck pin and this turnbuckle? I need two of those, as well.

Edited by - ftworthsailor on 03/05/2013 07:58:09

Ape-X
Admiral

Members Avatar

USA
662 Posts

Response Posted - 03/05/2013 : 11:04:12

e-mail me your address:
my e-mail is imkeene at msn dot com.

I do not have the t-bolt assembly, I re-used those.

Edited by - on

dmpilc
Master Marine Consultant

Members Avatar

USA
4593 Posts

Response Posted - 03/05/2013 : 21:06:55

If Ape-X can't help you, I've got several open turnbuckles with the parts you show above. Email me at pilcherd at bellsouth dot net and we'll work something out. They were spares for the c-25 I sold last year.

Edited by - on

Ape-X
Admiral

Members Avatar

USA
662 Posts

Response Posted - 03/06/2013 : 05:21:24

ftworth: I got your address and will mail out some turnbuckles to you by this weekend.

Edited by - on

ftworthsailor
Captain

Members Avatar

USA
279 Posts

Response Posted - 03/06/2013 : 18:35:24

Awesome! Thank you very much!! What do I owe you?

Edited by - on

Ape-X
Admiral

Members Avatar

USA
662 Posts

Response Posted - 03/07/2013 : 05:02:15

Just pay it forward for someone else in need.

Edited by - on

Ape-X
Admiral

Members Avatar

USA
662 Posts

Response Posted - 03/11/2013 : 17:20:10

Shipped out today, you should see by Wednesday: Only had the turnbuckles, but hope you can use them.

Edited by - on

Stinkpotter
Master Marine Consultant

Members Avatar

Djibouti
9081 Posts

Response Posted - 03/11/2013 : 18:14:26

<blockquote id="quote">quote:<hr height="1" noshade id="quote">Originally posted by ftworthsailor
 (prefer closed body)<hr height="1" noshade id="quote"></blockquote id="quote">Lots of furrowed brows around here on that one...

Edited by - on

TakeFive
Master Marine Consultant

Members Avatar

2272 Posts

Response Posted - 03/11/2013 : 19:54:12

<blockquote id="quote">quote:<hr height="1" noshade id="quote">Originally posted by Stinkpotter
 <blockquote id="quote">quote:<hr height="1" noshade id="quote">Originally posted by ftworthsailor
 (prefer closed body)<hr height="1" noshade id="quote"></blockquote id="quote">Lots of furrowed brows around here on that one...
<hr height="1" noshade id="quote"></blockquote id="quote">
I know everyone seems to like the open bodied ones better, but I'm not sure why. It's nice to be able to just pull up the SS sleeve, inspect/clean/lubricate, and slide it back down without dealing with redoing a bunch of rigging tape. Is there something I'm missing here?

Edited by - on

Stinkpotter
Master Marine Consultant

Members Avatar

Djibouti
9081 Posts

Response Posted - 03/12/2013 : 07:11:47

<blockquote id="quote">quote:<hr height="1" noshade id="quote">Originally posted by TakeFive
 I know everyone seems to like the open bodied ones better, but I'm not sure why. It's nice to be able to just pull up the SS sleeve, inspect/clean/lubricate, and slide it back down without dealing with redoing a bunch of rigging tape. Is there something I'm missing here?
<hr height="1" noshade id="quote"></blockquote id="quote">If you're talking about covered turnbuckles, they're different from closed-body turnbuckles. Closed-bodies are typically stainless steel, which makes them prone to galling. They don't self-clean in the rain (or with a hose). They are "locked" with nuts that secretly unlock themselves. Their adjustment (especially when the nuts unlock) is not visible (unless you put a paint stripe on the threads). I've had them on a different boat--never again.

Most open-bodies (OEM on some C-25s and sold by CD) are bronze, and when you lock them with soft bronze cotter pins that wrap nicely around the body, no rigging tape is necessary (or desirable IMHO). No galling, and rain or hosing down keeps them clean, so they're essentially maintenance-free for the season. And if you do choose to use lock-nuts so you can change your rig tune, you can always see the adjustment (like before the mast somes down when a lock nut unlocks).

Whatever floats your boat (and keeps the stick up)...

Edited by - on

TakeFive
Master Marine Consultant

Members Avatar

2272 Posts

Response Posted - 03/12/2013 : 07:30:48

I was assuming that the "closed body" turnbuckles that he was referring to were the ones that Catalina supplies (and which CD disses), with a bronze bar stock, locked with cotter pins, and covered with a SS sleeve. No locknuts on those. You are correct, they are not closed body, they are just covered with a sleeve. Sorry for the confusion:

[url="http://www.catalinadirect.com/index.cfm?fuseaction=product.display&product_ID=352&ParentCat=235"]

[/url]

Edited by - TakeFive on 03/12/2013 07:32:21

ftworthsailor
Captain

Members Avatar

USA
279 Posts

Response Posted - 03/12/2013 : 20:54:07

Nope. Closed body turnbuckle, as shown in a picture that I posted previously. They may be prone to problems, however the reason I wanted them was because that is what I have on my lower shrouds and wanted to keep them all looking the same.

I do have another queston, tho.... Do any of you use PVC pipe to cover the lower part of the shrouds. I am thinking of doing this to mine, similar to my Catalina 22.

R

Edited by - on

ftworthsailor
Captain

Members Avatar

USA
279 Posts

Response Posted - 03/13/2013 : 19:09:36

<blockquote id="quote">quote:<hr height="1" noshade id="quote">Originally posted by Ape-X
 Shipped out today, you should see by Wednesday: Only had the turnbuckles, but hope you can use them.
<hr height="1" noshade id="quote"></blockquote id="quote">

Received the package today. They look GREAT ! ! ! Thank you so much ! ! !

Edited by - on

Ape-X
Admiral

Members Avatar

USA
662 Posts

Response Posted - 03/14/2013 : 03:37:08

Glad you are happy! We are all looking forward to the progress pictures... :O)

Edited by - on

dmpilc
Master Marine Consultant

Members Avatar

USA
4593 Posts

Response Posted - 03/14/2013 : 20:15:10

Yes, PVC pipe works great, especially on the forward lowers. You will need a larger size than on the C-22, in order to get over the larger turnbuckles.

Edited by - on

ftworthsailor
Captain

Members Avatar

USA
279 Posts

Response Posted - 03/15/2013 : 20:13:10

I intended on using Schedule 40 3/4 inch PVC pipe on my shrouds. All of them. Here is a picture of my C-22 with this setup. Yes. I have 5ft PVC pipes covering all the shrouds. Works like a CHAMP on protecting my Genoa.

Edited by - ftworthsailor on 03/15/2013 20:13:42
